GIMAX 3D | FFF system for industrial production with brushless motors for max precision

GIMAX 3D – Hall: 11 – Stand: E187

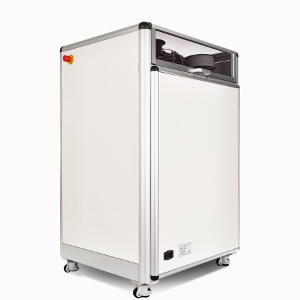

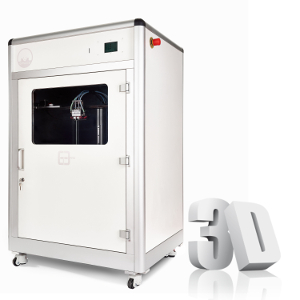

Gimax3D is a leading company in the industrial automation sector, and particularly in the production of FFF technology 3D printers. The G1 and G3 are the only FFF technology 3D printers to have a movement with brushless motors. This guarantees centesimal precision on positioning and repeatability perfect and infinite as there are no imperfections caused by movements of the axles with pulleys and belts. The printers have double extruder print head with interchangeable nozzles ranging from 0.2 mm to 0.8 mm. 0.4 mm nozzles are assembled on printers as default The extruders reach temperatures up to 450°C guaranteeing the printing of a large number of technical materials like PEEK. The extruders are totally liquid-cooled, allowing control and constant management of temperatures and enabling continuous 24h operation. The plate is coated entirely in Polyetherimide and offers printing with excellent adhesion. The special covering also allows easy removal of the printed pieces as very little friction is caused. The plate can be extracted completely thanks to the 2 sliding runners which are blocked by a third runner located at the back. This allows the printed pieces. especially the large sizes, to be removed easily from the printer. The plate is heated and can reach a temperature of 150°C. The optical filament detector on our printers is currently the best to be found on the international market. It allows you to work with any type of filament and any colour variation including transparent filaments. Inside the printer there is a system that guarantees the continuation of every printing process in case of blackout. A sensor, in fact, detects absence of electricity from the power supply, it memorizes the last position of the printer and when the power supply returns to normal, it offers the user the possibility to continue working with the printer.

* The published news is edited by exhibiting companies. Exhibitor assumes responsibility for what is published in his own page.
