Smart Camera B60: Massive Power through Next Level Machine Vision

WENGLOR
Pad. 13 stand B16

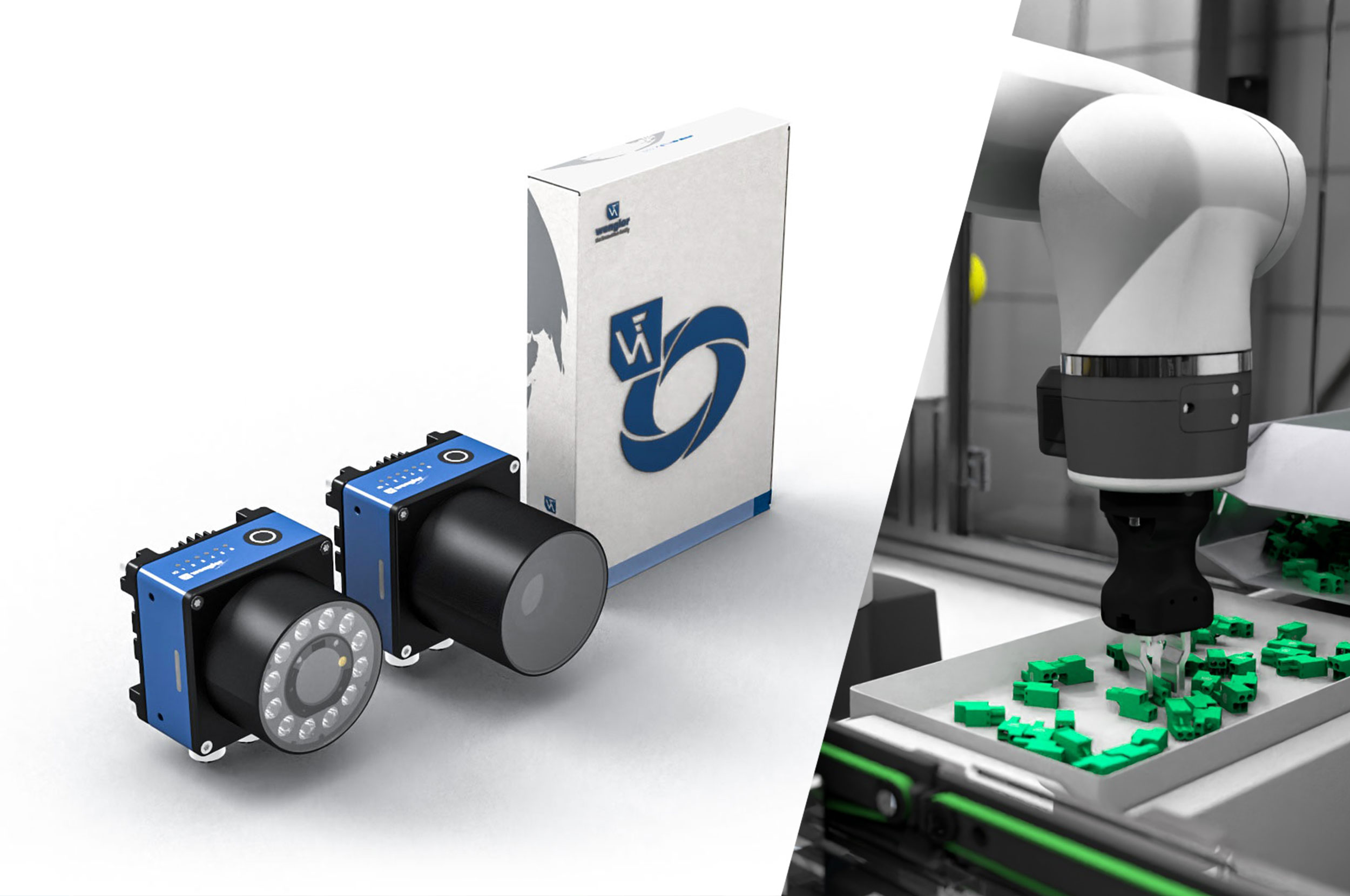

The outstanding performance of the B60 series from wenglor achieves a new level of industrial image processing. The effective interplay between hardware and software enables comprehensive and expandable solutions to be achieved for demanding image processing applications.

Based on high-performance hardware and combined with a highly modular structure, the B60 Smart Cameras can be used in a wide variety of applications: for example, position detection, pattern matching, object detection, measurement, or code reading.
Tool-free and fast mounting of lighting modules, filters, lenses and other supplementary components allows for easy setup and optimized image capture. Thanks to auto-focus and C mount, wenglor’s B60 smart camera offers a wide range of options to enable individual adaptation of the image processing system to the specific requirements of each application.
The B60 series is available in a total of 12 different hardware packages with auto-focus or C mount, which are ideally complemented by the appropriate wenglor uniVision 3 software package. wenglor uniVision 3 is based on a modular principle and impresses with its easy parameterization. Numerous predefined projects are available in advance. The extensive module collection stands out due to adjustable and freely usable modules that can be used flexibly in any order and quantity per project.
Even modules for complex applications where simple parameterization is not sufficient can be freely programmed in HALCON. No machine vision experts or programming specialists are required to integrate the script into the uniVision project. After programming in the HDevEngine, the HALCON script can be imported and integrated into the uniVision software with just a few clicks.
The wenglor B60 has further groundbreaking functions on board: As a smart camera, the B60 has a built-in gyroscope. For example, during cleaning or maintenance work in industrial facilities, the camera position may shift unintentionally, which can typically lead to inaccurate measurement results and more lengthy troubleshooting. Thanks to the built-in position sensor, the wenglor B60 smart camera immediately recognizes such undesired position deviations. This information is output via the device status LED, which makes it easy to locate the source of the fault – in this case, the incorrect camera set.
When using multiple Smart Cameras in a network, the new wenglor Discovery Tool makes much easier to find individual machine vision devices – independently of the network configuration of the existing system infrastructure. wenglor’s Discovery Tool features an intuitive access to the device website, which enables simple web-based management and configuration of the B60.
